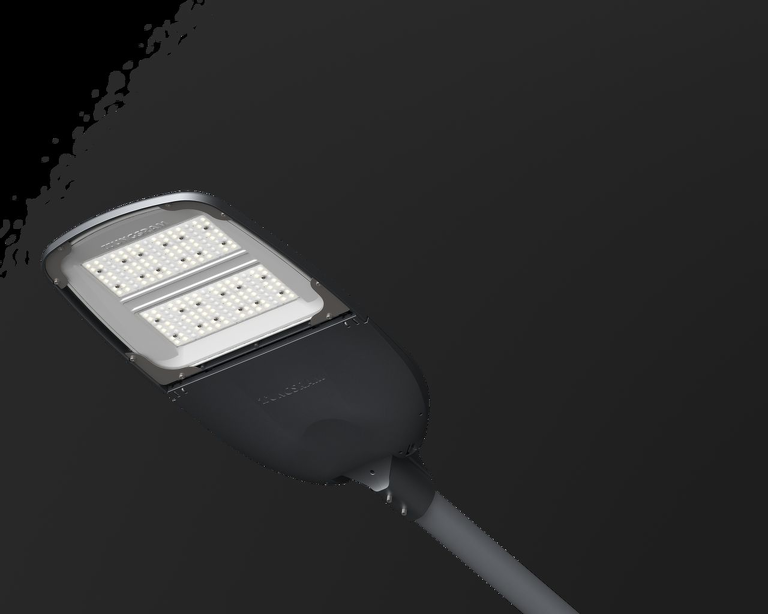

The new Tungsram luminaire, with its innovative and unique solutions, is an excellent choice for road and street applications. The key aspects of the lamp development are the simple and fast installation, the tool-free repair options and the diverse usage. The luminaire meets the expectations of the 21st century: sleek design, and high efficiency. Inlumino is also suitable for a variety of applications, as it can be installed as a light source or easily upgraded to an IoT data point. Take advantage of the innovation from Tungsram and optimize your outdoor lighting with the new range of Inlumino luminaires.



Telepítési útmutató



Structures and materials

• Housing material: die-cast aluminium body and coupler, with stainless steel screws.
• Optic material: Optical-grade polycarbonate
• Optical cover: Tempered glass
• Colour: RAL7021
• Impact Strength: IK09 (glass) / IK09 (housing) / IK08 (Shorting Cap)


49 different optic combinations would be available which are suitable for pedestrian streets to high traffic roads.

Rated colour rendering index > 70
Rated correlated colour temperatures: 3000K, 4000K, 5000K

Rated initial chromaticity co-ordinate values:
• 3000K: CIE(x=0.4338, y=0.403) 5SDCM
• 4000K: CIE(x= 0.3818, y= 0.3797) 5SDCM
• 5000K: CIE(x= 0.34, y= 0.35) 5SDCM

• Extra surge protection device (10kV)
• NEMA socket with shorting cap
• Toolless removable geartray
• Fuse
• Eco version
